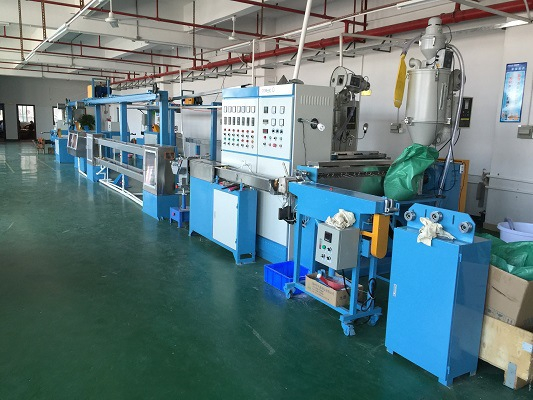

Application: suitable for the production of PVC, PE, PP cover of electronic wire, power cord, computer wire and other wire production.

Two, the main specifications and performance

1, use: PVC insulation materials such as extrusion coating.

2, applicable conductor core wire diameter: Phi 0.5mm- phi 3.0mm.

3, OD: Phi 0.8mm- phi 5.0mm.

4, the amount of charge: 75KG/HR (open head).

5, charging speed: 500M/MIN. (mechanical setting).

6, wire concentricity of more than 95%.

7, power supply 3 phase 380V, high mechanical center 1000mm.

8, this machine color: Blue

Three, equipment specifications:

1, biaxial tension reel diameter 630

(1), using the spool size (MM): 630 (Dia) *360 (Wid) *55 (Hol), through shaft type

(2), to the line speed: MA*500/MIN

(3), the top axis: axial type

(4), brake: mechanical tension, eccentric wheel tension structure automatic adjustment

2, the whole straight tool box

(1), three three (phi 55 surface plating treatment.)

(2), according to the needs of the upper and lower adjustment

(3), center height 1000M/M

3, 50MM out of the host

(1), power: 15HP motor 15HP converter

(2), gear box gear box adopts hard gear: gear, precision grinding, splash lubrication

(3): screw diameter: 50MM diameter BM specifications L/D:25:1 speed: 10-110 to BRM

Material: 38GrMoAlA high quality carbon alloy steel, all plastic channel grinding

Surface treatment: hard chromium plating 0.07 thick, hardness HRC60 degrees.

(5), screw cylinder: Material: 38GrMoAlA surface treatment: quenching and tempering treatment of re processing (ion nitriding of the two)

Hardness: HRC62 degrees temperature: 3 position cylinder temperature accuracy of plus or minus 2 degrees.

(6), the head: adjustable head of the group of 1 (mold group), the material: ACE imported steel by hard chromium treatment of 1.

(7), chuck: Type: lock opening 1 groups, easy to use

(8), electric heating: the 5 section, voltage 380V/50HZ, power 1.5KW/ segment of the hot spot

(9), the screw cylinder cooling mode: high pressure centrifugal fan 3, each one of the cylinder, with the thermostat automatic cooling

(11), drying hopper: capacity: 25KG, automatic feeding on the material

(12), vacuum suction machine: capacity: 300KG per hour (highest), the lack of automatic feeding, no material automatic alarm

4, electrical control cabinet:

(1), inverter 11Kw/2.2Kw/1.5Kw

(2), the proportion of the combination of control linkage (when the single line of the measurement of a certain diameter, into the linkage and accelerate at the same time)

(3), contactor temperature control table

(4) other electrical components

5, stainless steel water tank:

(1), material: SUS304 stainless steel

(2), slot length: 1.5M

(3), trough type: U type, 180MM (wide) *140MM (high) move the amount of 500MM attached to the lid of the closed blowing swab group of 1

6, stainless steel fixed sink:

(1), material: SUS304 stainless steel

(2) and groove type: U type, 160MM (high) *180MM (width), the tail section with closed blowing and wiping device 1 group cover

(3), slot length: 7M

7, double wheel type winding machine:

(1), drag: 3HP motor 3HP converter

(2), type: double tank type

(3), the lead wire speed: the highest 500M/MIN, and the main linkage control

(4), take up roller material: aluminum alloy, wheel diameter: 400MM diameter wheel: U channel, 4 channel (balance)

(5), open box material: SUS304 stainless steel

8, tension wire storage rack 10M

(1), type: horizontal type

(2), power: 1HP motor with 5Kgf/M magnetic powder clutch

(3): a core type cable transmission

(4) the length of the cable: (MAX) 15-200M

(5) and a guide wheel: diameter 150MM

(6), material: alloy aluminum wheel number: 10 11 wheel

(7), collision: compression spring, to overcome the touch

(8) double detection device: linear tension control

(9), safety device: the front and rear end of the limit, the sudden stop control

(10) and a control box: put in the line frame line guide wheel steering control, the motor is reversed, DC-0-24V power control VR ampere tension adjustment, tension, power indicator.

(11), tension adjustment: can be adjusted, the car can be both positive and negative control, synchronous automatic control instrument take-up speed, prevent wire tensile strain

9, power frequency spark testing machine

(1), type: ST-15A type

(2), the highest detection voltage 15KVA

(3), comply with GB3048.9 standards

(4), adaptation: wire and cable products under the state of the line pressure test

(5) the wire diameter range: Phi 0.3-15mm

(6), alarm: LED alarm indication, can choose to connect with the automatic alarm stop

10, high speed printing machine

(1) Taiwan import small power motor, power 0.15KW ratio: 1:25

(2), adaptation speed: 0-500m/min

(3) for printing wheel diameter: 120 mm Phi Phi 90-

(4) stainless steel oil cartridge 2

11, two axis line and machine

(1) 400-, Phi Phi 600 spool general or customer size

(2), power; 2HP motor 2HP converter

(3) 5Kg, biaxial electromagnetic clutch, with convenient replacement spool

(4) automatic meter down, with frequency conversion and tension frame shift detector to realize automatic control line

(5), Phi 20 type power cable rod, row spacing and row width is adjustable, and the take-up speed linkage cable uniform

(6) the maximum take-up speed of the storage line is adapted to the line speed 500M/MIN

(7), with bakelite take-up shaft disc and shaft splint 2 sets
